Draugen

Draugen was discovered in 1984 and the oil is found in the Garn and Rogn formations, of which the latter holds approximately 90% of the reserves. It has been producing since 1993.

Licence Name

PL 093

Location

6407/9 - 6407/12

Ownership
44.560 %
Operator
OKEA ASA
Status
In production

Development

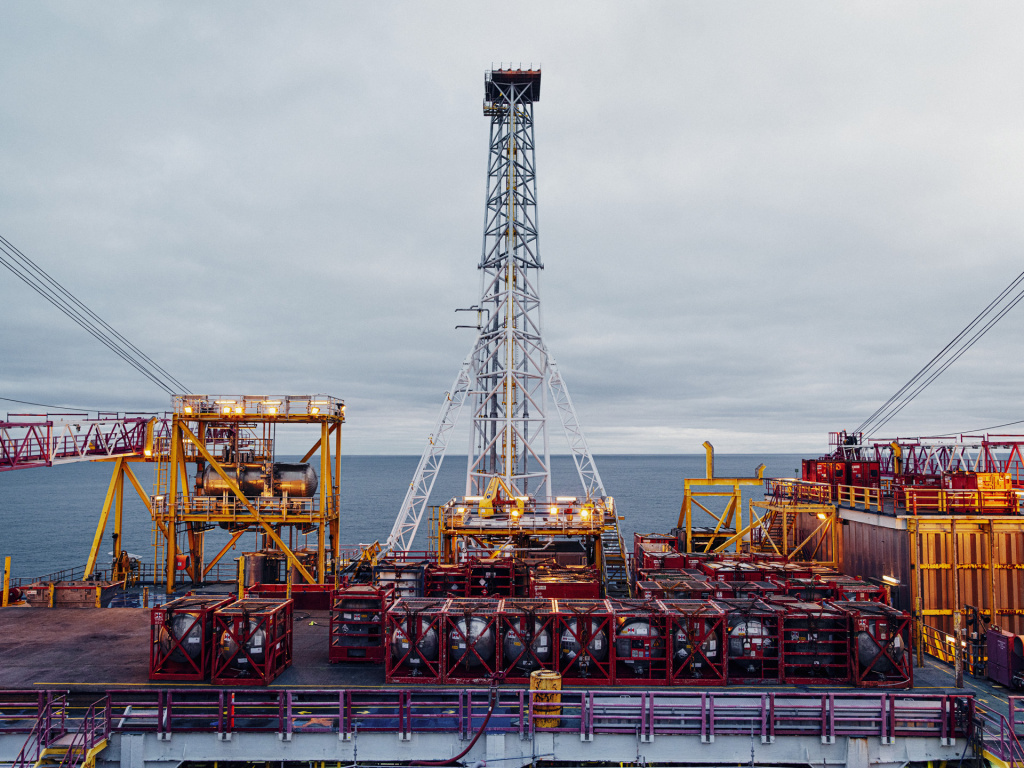

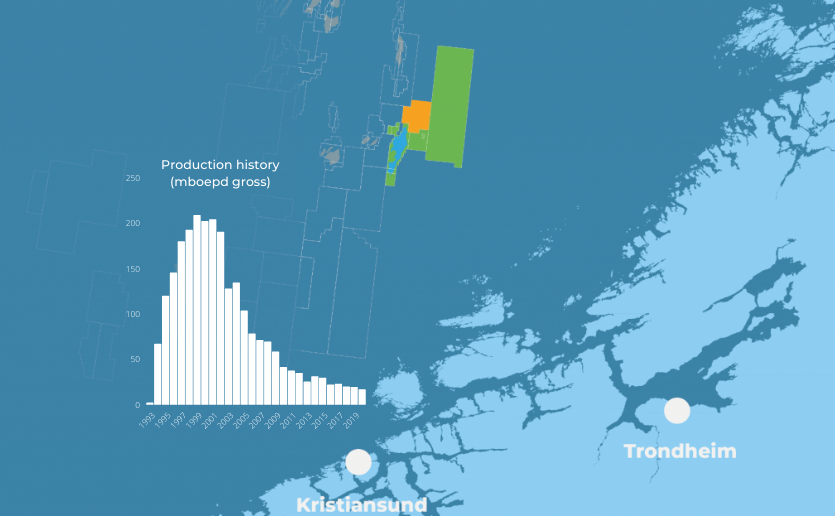

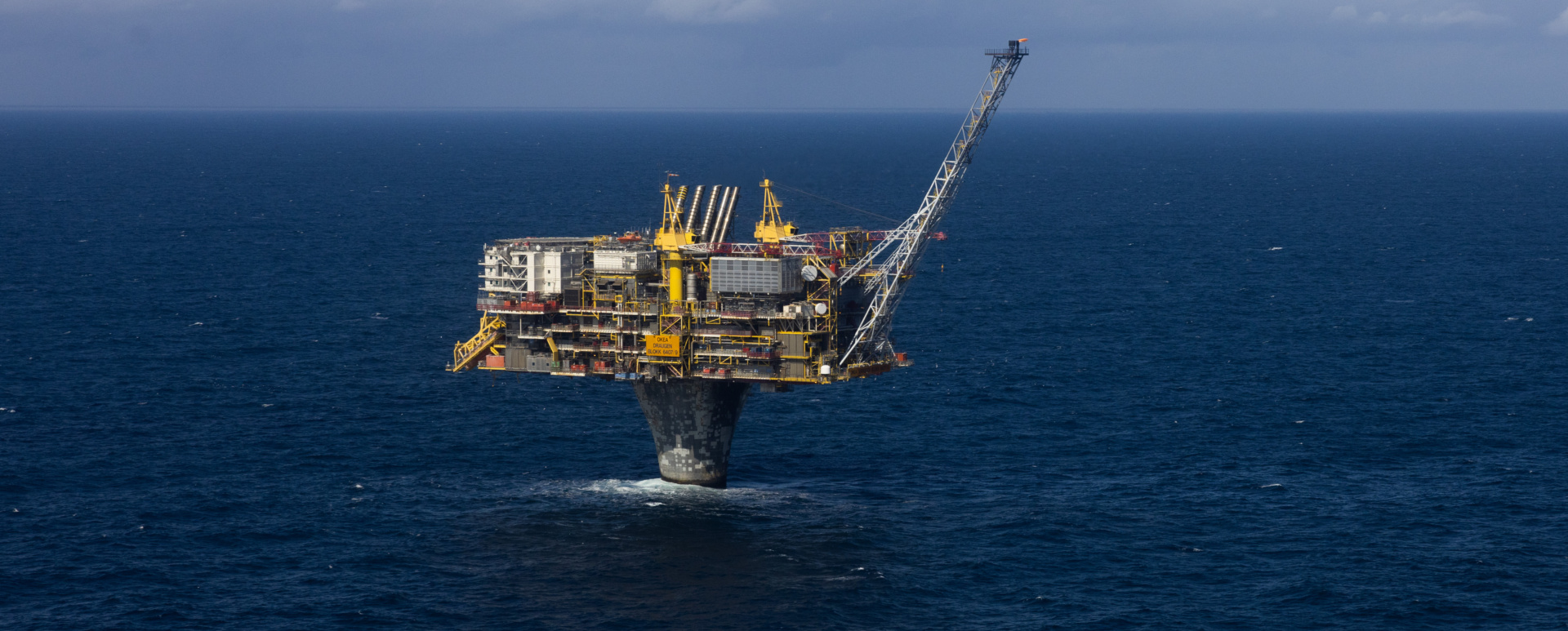

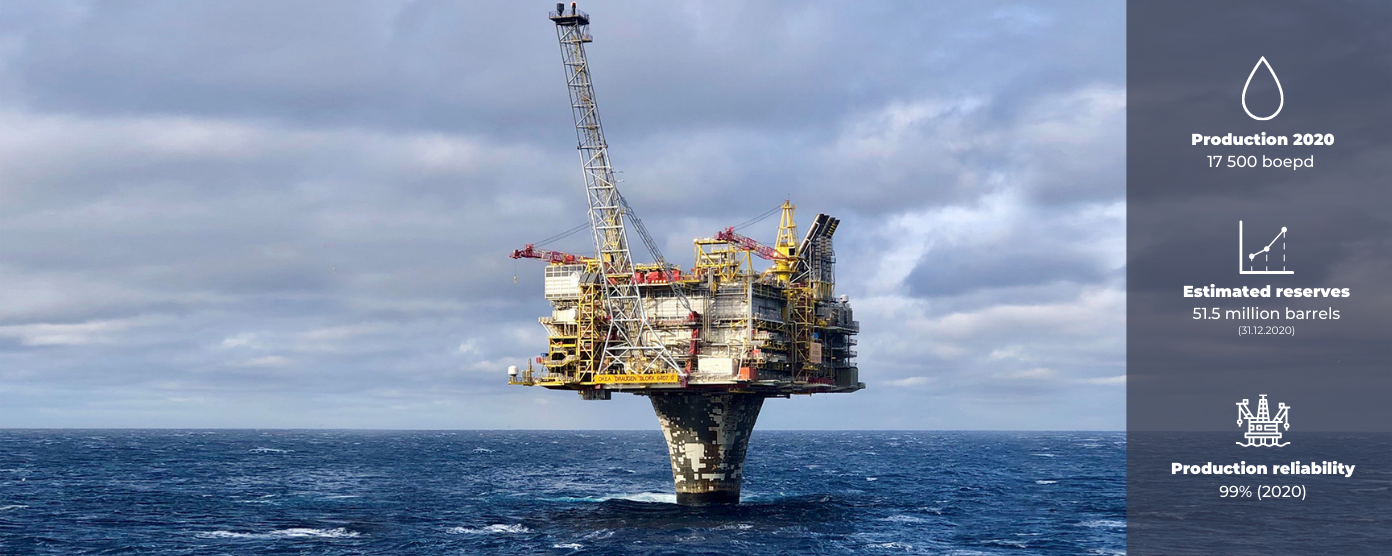

Draugen is a field in the southern part of the Norwegian Sea. The water depth in the area is 250 metres. Draugen was discovered in 1984, and the plan for development and production (PDO) was approved in 1988. The field has been developed with a concrete fixed facility and integrated topside, and has both platform and subsea wells. Stabilised oil is stored in tanks at the base of the facility. Two pipelines connect the facility to a floating loading-buoy. Production started in 1993.

Reservoir

Draugen produces oil from two formations. The main reservoir is in sandstone of Late Jurassic age in the Rogn Formation. The western part of the field also produces from sandstone of Middle Jurassic age in the Garn Formation. The reservoirs lie at a depth of 1,600 metres. They are relatively homogeneous, with good reservoir quality.

Recovery

The field is produced by pressure maintenance from water injection and by aquifer support.

Transport

The oil is offloaded via a floating loading-buoy and exported by tankers. The associated gas is used for power generation. Excess associated gas is transported via the Åsgard Transport System (ÅTS) to the Kårstø terminal.

Status

One new well was drilled in 2015 and started production in late 2017. A new subsea pump contributes to increased production from the subsea wells. With declining oil production, sufficient volumes of associated gas will not be available for power generation, and alternative solutions are therefore being evaluated. Life time extension for the subsea structures is required to maintain the forecasted production profile.

Discorvery Year

1984

Production start year

1993

Total investment

39346 mill NOK

Operational Wellbores

16

Production

(Mill Sm³)
  • Oil
  • Gas

Investment



55 %

This year
Last year

Production

$ 3,000,000,000

41.7 %

This year
Previous year

Shares

Operator

OKEA ASA

  • Petoro AS
  • OKEA ASA
  • Neptune Energy Norge As
